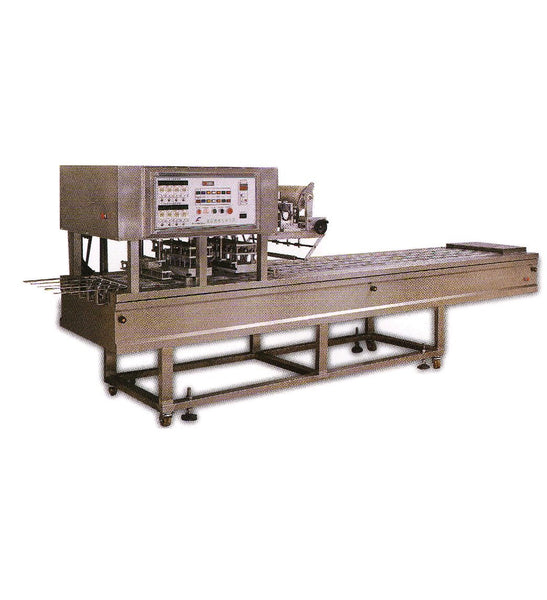

Product Type: Tray Sealing Machine / Tray Sealer

Product Information

* Machine caters for tray size upto 160x220 mm in 2 Line. Others subject to discussion.
* Suitable for any sealable trays such as PP. PE. PET. PVC. and Card Board trays.
* Sealing jig with profile cut on sealing film (About 3 mm film edge extend out the tray).
* Machine through put around 18 cycle/minute. 2 Lines through put 36 Tray/minute.
* Machine seal and cut controlled by pneumatic and central controlled by PLC.
* Electrical power supply : 415VAC, 10A.
* Pneumatic compressed air supply : 600KPa, 600L/M.
* Machine dimension: 600W x 1500 H x 3000 L. 620 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.
* On lockable castors, compact design.
* Index forward, fast operation.
* Easy film loading system.
* One operation for all.

Product Options

* Printed film PE.registration mark control
* Manual hot ink datecoder ET-02M
* Tray De-nester
* Piston Filler
* Double seal device
* Precut lid applicator
