Integrated Production Line System

Helix specializes customized holistic systems comprised of multiple different packaging machineries working in unison.

See the following section for some of these profile setups

WU-V600IA Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer WU-V600IA Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

WU-V600IA

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For Nylon; PET; Foil or paper laminated bags vacuum packing.

* Electronic timed single impulse sealing jaws with vacuum function.

* Sealing dimension 3 width x 600 long.

* Max. film thickness 200 um vacuum bag. (A small vacuum pump included)

* Can be set in auto seal, dwell and cycling time.

* Compressed air required: 500 kpa. 20 L/M.

* Electrical data: 240 vac, 800 Wat. 30% duty cycle.

* Machine dimension: 400 mm D x690 mm W x230 mm H. Estimate weight : 36 kg.

Product Features

* Fully automatic easy for operation.

* Vacuum and Gas flushing selectable.

* PC board for all electrical data setting.

Product Options

* External 1 HP, 20CM/H pump

* Stainless steel frame

* Stainless steel cabinet

* External compressor 1.5HP, 180L/M

View full product details »

WU-V450IA Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer WU-V450IA Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

WU-V450IA

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For sealing Nylon; PET; Foil or paper laminated bags with air evacuation

* Electronic timed single impulse sealing jaw with vacuum function.

* Sealing dimension 3mm wide x 450 long.

* Maximum film thickness 200 um vacuum bag. (A small vacuum pump included)

* Can be set in - auto seal, dwell and cycling time.

* Compressed air required: 500 kpa. 20 L/M.

* Electrical data: 240 vac, 600 Watt. 30% duty cycle.

* Machine dimension: 400 mm D x580 mm W x230 mm H.- Estimated weight : 30 kg.

Product Features

* Fully automatic - easy operation.

* Vacuum and Gas flushing selectable.

* PC control board for - electrical data settings.

Product Options

* External 1 HP, 20CM/H pump

* Stainless steel frame

* Stainless steel cabinet

* External compressor 1.5HP, 180L/M

* Gas flow regulator

View full product details »

WU-V300IA Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer WU-V300IA Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

WU-V300IA

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For Nylon; PET; Foil or paper laminated bags vacuum packing.

* Electronic timed single impulse sealing jaws with vacuum function.

* Sealing dimension 3 width x 300 long.

* Max. film thickness 200 um vacuum bag. (A small vacuum pump included)

* Can be set in auto seal, dwell and cycling time.

* Compressed air required: 500 kpa. 20 L/M.

* Electrical data: 240 vac, 400 Wat. 30% duty cycle.

* Machine dimension: 400 mm L x390 mm W x230 mm H. Estimate weight : 28 kg.

Product Features

* Fully automatic easy for operation.

* Vacuum and Gas flushing selectable.

* PC board for all electrical data setting.

Product Options

* External 1 HP, 20CM/H pump

* Stainless steel frame

* Stainless steel cabinet

* External compressor 1.5HP, 180L/M

View full product details »

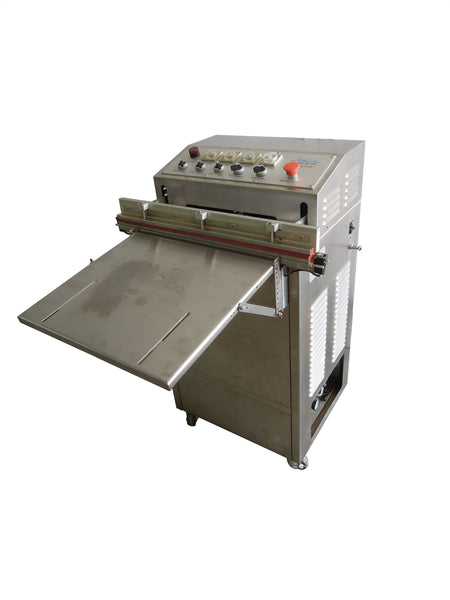

SB-V600IAH Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer SB-V600IAH Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

SB-V600IAH

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For sealing Nylon; PET; Foil or paper laminated bags with vacuum and gas flushing

* Electronic timed single impulse sealing jaws with vacuum, gas flushing function.

* Sealing dimension 10mm wide x 600mm long.

* Maximum. film thickness 200 um vacuum bag.

* Can be set to - auto seal, vacuum & gas flush with dwell time.

* Inbuilt Vacuum pump: 1 HP, 20 CM/H. Compressed air supply required

* Electrical data: 240 Vac, 2400 Watt. 60% duty cycle.

* Machine dimension: 720 mm D x 720 mm W x 720 mm H. Estimated weight : 100 kg.

Product Features

* Fully automatic - simple operation.

* Adjustable Vacuum and/or Gas flushing selectable.

* Adjustable product support platform.

* System controlled by Mitsubishi PLC

* Ideal for heavy product 1 - 5 kg.

Product Options

View full product details »

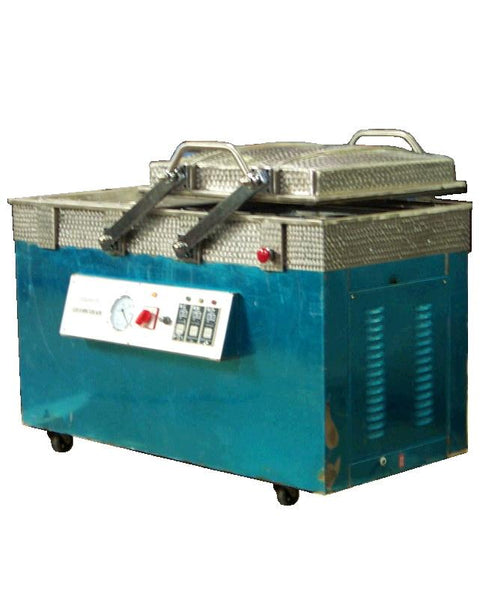

HQ-DZQ522 Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer HQ-DZQ522 Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

HQ-DZQ522

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For vacuum packing with bags such as Nylon/PE, Foil, PET or lamilated film.

* Electronic digital timed impulse sealing jaw.

* Electronic digital timed air evacuation.

* Chamber dimension: 510 mmL x 520 mmW x 100 mmH.

* External dimension : 1300 mmW x 560 mmD x1200 mmH. ( 130 kg weight ).

* Sealing dimension: 500 mmL x 12 mmW, 2 OFF with 160 um film max. thickness.

* Electrical data: 240 VAC, 1200 W, 20 SEC / CYCLE.

* Vaccum data: 20 M3 / H, -1.3 KPa. Max.

Product Features

* Stainless steel frame work

* 2 sealing bar for high volume production.

* Vaccum and gas flushing level adjustable.

* Floor stand with 4 off castors movable.

Product Options

View full product details »

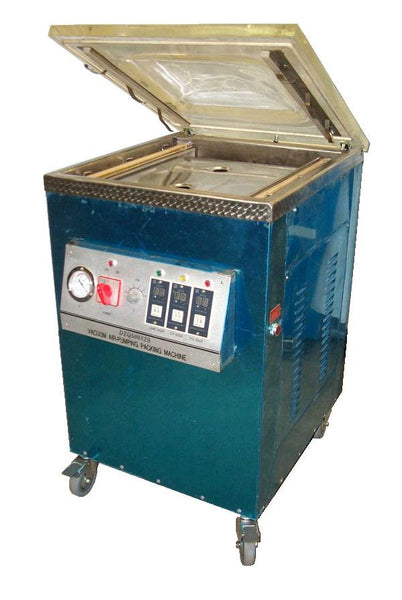

HQ-DZQ500 Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer HQ-DZQ500 Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

HQ-DZQ500

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For vacuum packing with bags such as Nylon/PE, Foil, PET or lamilated film.

* Electronic digital timed impulse sealing jaw.

* Electronic digital timed air evacuation.

* Chamber dimension: 510 mmL x 500 mmW x 160 mmH.

* External dimension : 610 mmL x 546 mmW x1200 mmH. ( 90 kg weight ).

* Sealing dimension: 500 mmL x 10 mmW, 2 OFF with 160 um film max. thickness.

* Electrical data: 240 VAC, 750 W, 18 SEC / CYCLE.

* Vaccum data: 20 CM / H, -1.3 KPa. Max.

Product Features

* Stainless steel frame work

* 2 sealing bar for high volume production.

* Vaccum and gas flushing level adjustable.

* Floor stand on 4 off castors movable.

Product Options

View full product details »

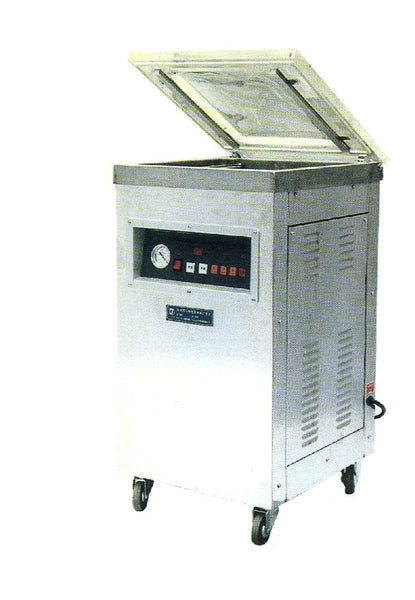

HQ-DZQ400 Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer HQ-DZQ400 Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

HQ-DZQ400

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For modifying atmosphere by vaccum and gas flushing.

* Electronic timed impulse sealing jaw (2 off 10 mm x 400 mm Long)

* Electronic timed air evacuation and gas flushing. (4 off nozzle)

* Chamber dimension: 420 mmL x 440 mmW x 115 mmH.

* External dimension : 550 mmL x 500 mmW x 950 mmH. (80 kg weight ).

* Sealing dimension: 400 mmL x 10 mmW. with 160 um film max. thickness.

* Electrical data: 240 VAC, 750 W, 20 SEC / CYCLE.

* Vaccum data: 20 CM / H, -1.3 KPa. Max.

Product Features

* Robust construction in aluminium casting and s / steel.

* See through lid for easy operation.

* Vaccum and gas flushing level adjustable.

* Long life heating element.

Product Options

View full product details »

HL-V800IAH Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer HL-V800IAH Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

HL-V800IAH

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For vacuum packing: Nylon; PET; Foil or paper laminated bags.

* Electronic timed single impulse sealing jaws with vacuum, gas flushing function.

* Sealing dimension 10 width x 800 long.

* Max. film thickness 200 um vacuum bag.

* Can be set in auto seal, dwell and cycling time.

* Compressor data: 1.5 HP, 180 L/M. Vacuum pump data: 1 HP, 20 CM/H.

* Electrical data: 240 vac, 2600 Wat. 60% duty cycle.

* Machine dimension: 1000 mm D x 1600 mm W x 1670 mm H. Estimate weight : 100 kg.

Product Features

* Fully automatic easy for operation.

* Vacuum, Gas flushing selectable-twin vacuum nozzles

* Adjustable Product support table.

* Ideal for heavy product 10 - 30 kg.

Product Options

* Stainless steel frame

View full product details »

HL-V600IAU Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer HL-V600IAU Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

HL-V600IAU

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For sealing Nylon; PET; Foil or paper laminated bags with vacuum and gas flushing

* Electronic timed single impulse sealing jaws with vacuum, gas flushing function.

* Sealing dimension 10mm wide x 600mm long.

* Maximum. film thickness 200 um vacuum bag.

* Can be set to - auto seal, vacuum & gas flush with dwell time.

* Inbuilt Compressor: 1.5 HP, 180 L/M. - Inbuilt Vacuum pump: 1 HP, 20 CM/H.

* Electrical data: 415 Vac, 2600 Watt. 60% duty cycle.

* Machine dimension: 720 mm D x 720 mm W x 1720 mm H. Estimated weight : 100 kg.

Product Features

* Fully automatic - simple operation.

* Adjustable Vacuum and/or Gas flushing selectable.

* Height adjustable product support platform.

* Machine body stainless steel

* Ideal for heavy product 10 - 30 kg.

* Sealing bar with safety protection device

Product Options

View full product details »

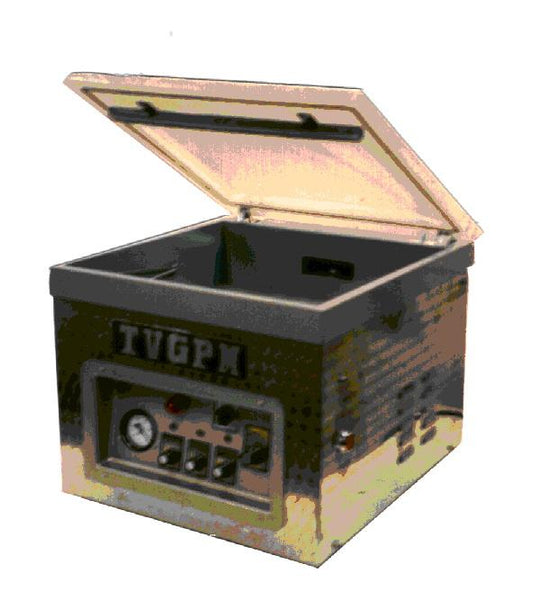

HG-V400B Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer HG-V400B Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

HG-V400B

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For modifying atmosphere by vaccum and gas flushing.

* Electronic timed impulse sealing jaw and Electronic timed air evacuation.

* Max. film 160 um thickness.

* Chamber dimension: 415 mmL x 405 mmW x 122 mmH.

* External dimension : 510 mmL x 440 mmW x 370 mmH. ( 65 kg weight ).

* Sealing dimension: 400 mmL x 10 mmW.

* Electrical data: 240 VAC, 750 W, 20 SEC / CYCLE.

* Vaccum data: 20 CM / H, -1.3 KPa. Max.

Product Features

* Robust construction in aluminium casting and stainess steel.

* See through lid for easy operation.

* Vaccum and gas flushing level adjustable.

* bench top operation.

* Long life heating element.

Product Options

View full product details »

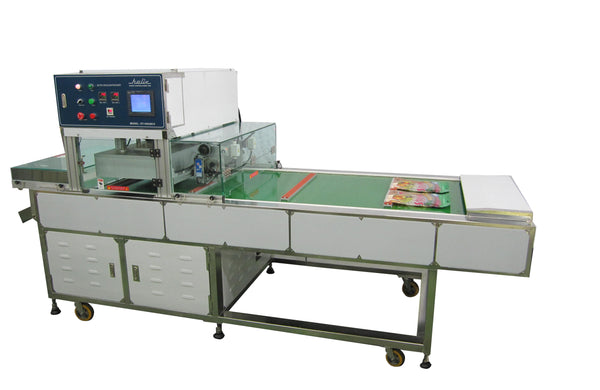

ET-V6538AUTO Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer ET-V6538AUTO Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

ET-V6538AUTO

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* Machine caters for bag size upto 300Wx360L in 2 Line.

* Suitable for any sealable bag such as PP. PE. PET. PVC. and Card Board .

* Sealing jaw 650mm Long with vacuum chamber 470Wx740Lx120H

* Machine through put around 8-15 cycle/minute (Vacuum Level depended)

* Product conveyor using 800W at 22" (558.8mm) pitch appart

* Machine controlled by Mitsubishi PLC. Through Touch screen (TSC)

* Electrical power supply : 3PH. 415VAC, 10A.

* Pneumatic compressed air supply requirement: 600KPa, 800L/M.

* Machine dimension: 1,030W x 3,020L x 1,540H. 800 kg approximate.

Product Features

* Sturdy construction, stainless steel frame work.

* On lockable castors, compact design.

* Index forward, fast operation.

* With Vacuum and Gas flushing

* Special design for easy change tooling

* All function on the PLC and TSC

Product Options

* Hot Foil Printer

* Injet Printer

View full product details »

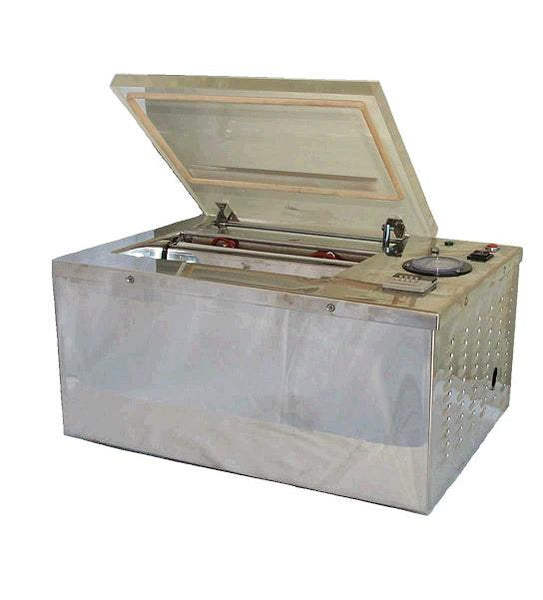

DZU-300 Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer DZU-300 Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

DZU-300

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For making solid bags by vaccum 120 um film thickness max.

* Electronic timed impulse sealing jaw.

* Electronic timed air evacuation.

* Chamber dimension: 290 L x 90 W x 210 H.

* External dimension : 500 L x 350 W x 260 H. ( 35 kg weight ).

* Sealing dimension: 270 L x 8 W.

* Electrical data: 240 VAC, 750 W, 20 SEC / CYCLE.

* Vaccum data: 15 CM / H.

Product Features

* Suitable for stand up bags (Tea bag or coffee bag)

* See through lid for easy operation.

* Vaccum level adjustable by time.

* bench top operation.

* Long life heating element.

Product Options

View full product details »

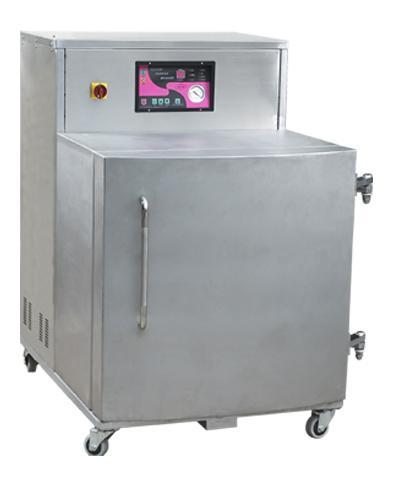

DJ-V650U Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer DJ-V650U Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

DJ-V650U

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For sealing vaccum bags with modified atmosphere by vaccum and gas flushing.

* Electronic timed impulse sealing jaw

* Electronic timed air evacuation and gas flushing.

* Chamber dimension: 485D x 680W x 680H

* Sealing dimension: 10mm x 650mm long

* Vaccum pump: 45 CM / H, -90 KPa. Max. (See Option)

* Electrical data: 415 VAC, 1,500 Watt, 30 Sec / Cycle.

* External dimension : 930 mmD x 1200 mmW x 1410 mmH. (370 kg weight ).

Product Features

* Up right style for bulk product

* Up right hinged door for easy loading product

* Stainless steel frame work for food industries.

* Adjustable Vacuum and Gas flushing levels

* Digital PC control board

* Long life sealing elements

Product Options

* External vacuum filter

* Diferent vacuum pump model

* Gas flow regulator

View full product details »

BR-V500F2 Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer BR-V500F2 Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

BR-V500F2

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For sealing product in vacuum bags with modified atmosphere by vaccum and gas flushing.

* Electronic timed impulse sealing jaws - 2 off 10mmW x 500mmL (1 each side)

* Electronic timed air evacuation and gas flushing. (4 off nozzle)

* Chamber dimension: 520 mmL x 540 mmW x 115 mmH.

* External dimension : 650 mmL x 600 mmW x 950 mmH. (90 kg weight ).

* Sealing dimension: 500 mmL x 10 mmW. - Maximum 160 um film thickness.

* Electrical data: 240 VAC, 750 Watt, 20 SEC / CYCLE.

* Vaccum data: 20 CM / H, -90 KPa. Max.

Product Features

* Stainless steel frame work for food industries.

* See through lid - to assist easy operation.

* Adjustable Vaccum and gas flushing levels

* Digitl PC control board

* Long life sealing elements

Product Options

*Gas flow regulator

View full product details »

BR-V400F2 Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer BR-V400F2 Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

BR-V400F2

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For sealing vaccum bags with modified atmosphere by vaccum and gas flushing.

* Electronic timed impulse sealing jaw - 2 off 10 mm x 400 mm L (1 each side)

* Electronic timed air evacuation and gas flushing. (4 off nozzle)

* Chamber dimension: 420 mmL x 440 mmW x 115 mmH.

* External dimension : 550 mmL x 500 mmW x 950 mmH. (80 kg weight ).

* Sealing dimension: 400 mmL x 10 mmW. - Maximum 160 um film thickness

* Electrical data: 240 VAC, 750 Watt, 20 SEC / CYCLE.

* Vaccum data: 20 CM / H, -90 KPa. Max.

Product Features

* Stainless steel frame work for food industries.

* See through lid to assist easy operation.

* Adjustable Vacuum and Gas flushing levels

* Digital PC control board

* Long life sealing elements

Product Options

* Gas flow regulator

View full product details »

BR-V400B2 Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer BR-V400B2 Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

BR-V400B2

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For sealing vacuum bags with modified atmosphere by vaccum and gas flushing.

* Electronic timed impulse sealing jaw - 2 off 10 mm x 400mm L - one each side

* Electronic timed air evacuation and gas flushing. (4 off nozzle)

* Chamber dimension: 420 mmL x 440 mmW x 115 mmH.

* External dimension : 550 L x 500 W x 500 H. (60 kg weight ).

* Sealing dimension: 400 L x 10 W. - Maximum 160 um film thickness.

* Electrical data: 240 VAC, 750 Watt, 20 SEC / CYCLE.

* Vaccum data: 20 CM / H, -90 KPa. Max.

Product Features

* Stainless steel frame work for food industries.

* See through lid to assist easy operation.

* Adjustable Vacuum and Gas flushing levels

* Digitl PC control board

* Long life sealing elements

Product Options

* Gas flow regulator

View full product details »

DJ-V600U Vacuum Packaging Machine/ Vacuum Sealer

+ Quick View

Vacuum-Sealer DJ-V600U Materials: food, meat, Vacuum Packaging Machine, Vacuum Sealer $888,888.00

DJ-V600U

$888,888.00

Notify me when this product is available:

Product Type: Vacuum Packaging Machine/ Vacuum Sealer

Product Information

* For sealing vaccum bags with modified atmosphere by vaccum and gas flushing.

* Electronic timed impulse sealing jaw

* Electronic timed air evacuation and gas flushing.

* Chamber dimension: 150D x 650W x 380H

* Sealing dimension: 10mm x 600mm long

* Vaccum pump: 40 CM / H, -90 Kpa. Max. (See Option)

* Electrical data: 415 VAC, 1,500 Watt, 30 Sec / Cycle.

* External dimension : 930 mmD x 1200 mmW x 1410 mmH. (370 kg weight ).

Product Features

* Up right style for bulk product

* Up right hinged door for easy loading product

* Stainless steel frame work for food industries.

* Adjustable Vacuum and Gas flushing levels

* Digital PC control board

* Long life sealing elements

Product Options

* External vacuum filter

* Diferent vacuum pump model

* Gas flow regulator

View full product details »

+Packaging Machines

+Main menu

Integrated Production Line System

Footer menu

Main menu

News & Updates
