BR-B150SF (DISCONTINUED)

$888,888.00

*See HL-B810HUP for updated model.

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuously sealing PP.PE. laminated film or paper bags.

* Sealing speed adjustable from 0 to 10 meter for fast sealing work.

* Digital control/display for temperature control

* Supplied with pair Teflon sealing bands

* Conveyor belt speed synchronous with sealing speed.

* Sealing pattern flat or knurled sqare cross - 15 mm wide.

* Electrical data: 220-240VAC, 500Wat. full duty cycle.

* Machine dimension: 800 mmL x 400 mmW x 300 mmH . Weight: 25 kg.

Product Features

* Bench top operation.

* Variable speed control.

* Conveyor height adjustable for different product.

* Frame made in stainless steel for food packing.

* Embossing printer.

Product Options

* Teflon coated steel band (spare)

* Vertical stand - installed .

* Teflon band (spare)

* Spare Charactor for Emboss printing

View full product details »

CC-B7201H

$888,888.00

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuous sealing of Polyethylene,polyproylene & laminated film/foil/paper

* Continuous sealing for - up to 200 um (subject to testing)

* Variable speed conveying - 0-10 M/min

* Digital Temperature control - up to 350?C

* Power - 220/240V 50/60Hz 1PH 480W Motor 15W

* Weight approx - 6Kgs

* Machine dimensions 150W x 100H x 500L

Product Features

* Fully geared drive for long service life

* Safety guards

* IC controlled circuits for convenient maintenance

* Balanced weight distribution

* Light weight for hand carry/operation

Product Options

* Teflon band spare each.

View full product details »

ET-C1220FQ

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For support product up to 10kg maximum

* Conveying speed adjustable from 0 to 10 M/M

* PVC. belting or can be up graded to food grade belt.

* Height normally set up at 850 mm.(with 50mm height adjustment).

* Flat belt size: 1,200 roller centre x 200mm wide

* Electrical data: 240VAC, 180Wat. AC motor. Full duty cycle

* Machine dimension:1,300 mmL x 300 mmW x 850 mmH .

* Machine weight: around 50kg.

Product Features

* AC motor and fixed speed.

* Stainless Steel frame work.

* Quick Release Belt for cleaning purpose

* Adjustable feet for level or castors as option.

Product Options

View full product details »

ET-C2020F

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For support product as customer wanted.

* Conveying speed adjustable from 0 to 10 M/M to match the sealer.

* PVC. belting or can be up graded to food grade belt.

* Height normally set up at 950 mm..

* Electrical data: 240VAC, 200Wat. DC motor. Full duty cycle

* Model: SLC20/120. (Conveyor belt size 200W x 2000L)

* Machine dimension:2000 mmL x 300 mmW x950 mmH .

* Machine weight: 15kg.

Product Features

* DC motor and variable speed drive.

* Aluminium frame work.

* Adjustable feet for level or castors as option.

Product Options

* SLC20/180.

* SLC20/150

* SLC20/200.

* Stainless Steel frame work

View full product details »

ET-C2020FQ

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For support product up to 10kg maximum

* Conveying speed adjustable from 0 to 10 M/M

* PVC. belting or can be up graded to food grade belt.

* Height normally set up at 850 mm.(with 50mm height adjustment).

* Flat belt size: 2,000 roller centre x 200mm wide

* Electrical data: 240VAC, 180Wat. AC motor. Full duty cycle

* Machine dimension:2,200 mmL x 300 mmW x 850 mmH .

* Machine weight: around 50kg.

Product Features

* AC motor and fixed speed.

* Stainless Steel frame work.

* Quick Release Belt for cleaning purpose

* Adjustable feet for level or castors as option.

Product Options

View full product details »

ET-C3020FQ

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For support product up to 10kg maximum

* Conveying speed adjustable from 0 to 10 M/M

* PVC. belting or can be up graded to food grade belt.

* Height normally set up at 850 mm.(with 50mm height adjustment).

* Flat belt size: 3,000 roller centre x 200mm wide

* Electrical data: 240VAC, 180Wat. AC motor. Full duty cycle

* Machine dimension:3,200 mmL x 300 mmW x 850 mmH .

* Machine weight: around 70kg.

Product Features

* AC motor and fixed speed.

* Stainless Steel frame work.

* Quick Release Belt for cleaning purpose

* Adjustable feet for level or castors as option.

Product Options

View full product details »

HL-B110HPS (DISCONTINUED)

$888,888.00

*See HL-B180H1P for updated model.

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continually sealing PE,PP, Foil, Lamilated or paper bags with knurled or plan seal.

* Sealing speed adjustable from 0 to 10 meter p/min for fast sealing work.

* Medium duty design for up to 5kg product with conveyor-seal high adjustment 20-65mm.

* Fitted with 15 mm wide Teflon sealing band. Sealing band centre high 750-900 mm.

* Sealing speed synchronous with Conveyor belt speed .(Conveyor width 200mm)

* Hot inkl printer for date or batch number printing. 2 lines of 12x5mm characters.

* Electrical data: 220-240VAC, 700Wat. full duty cycle.

* Machine dimension: 1100 L x 550 D x 1100 H . Weight: 60 kg.

Product Features

* Floor stand with stainless steel frame work.

* DC Variable speed in synchronisation .

* 3 way adjustable:Working high; product hight; angle.

* 1 set of heating bars and 1 set of cooling bars.

* Hot ink date printing.

Product Options

View full product details »

HL-B110U2S (DISCONTINUED)

$888,888.00

*See HL-B280U2P for updated model.

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuous sealing heavy PE, PP film, Laminated foil or paper bags

* Sealing speed adjustable from 0 to 10 meter p/min for fast sealing work.

* Medium duty design for up to 5kg bagged product with conveyor height 450 - 850 mm.

* Fitted with Teflon 15 mm wide sealing band (10-15 mm seal width).

* Sealing speed synchronous with Conveyor belt speed .(Conveyor width 200mm)

* 2 set of heating bar specially designed to seal gusset foil bag. Knurled or plain seal

* Electrical data: 220-240VAC, 1400Wat. full duty cycle.

* Machine dimension: 1200 L x 550 D x 1500 H . Weight: 70 kg.

Product Features

* Floor stand/body in stainless steel

* DC Variable speed synchronisation .

* Conveyor and/or sealing head - height adjustable.

* 2 sets of heating bars and 1 set of cooling bars.

Product Options

View full product details »

HL-B180H1P-L220 (DISCONTINUED)

$888,888.00

*See HL-B180H1P-L300 for updated model.

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continually sealing PE,PP, Foil, Lamilated or paper bags with knurled or plan seal.

* Sealing speed adjustable from 0 to 10 meter p/min for fast sealing work.

* Medium duty design for up to 5kg product with conveyor-seal high adjustment 20-65mm.

* Fitted with 15 mm wide Teflon sealing band. Sealing band centre high 750-900 mm.

* Sealing speed synchronous with Conveyor belt speed .(Conveyor width 220mm)

* Hot inkl printer for date or batch number printing. 2 lines of 12x5mm characters.

* Electrical data: 220-240VAC, 700Wat. full duty cycle.

* Machine dimension: 1100 L x 550 D x 1100 H . Weight: 60 kg.

Product Features

* Floor stand with stainless steel frame work.

* DC Variable speed in synchronisation .

* 3 way adjustable:Working high; product hight; angle.

* 1 set of heating bars and 1 set of cooling bars.

* Hot ink date printing.

Product Options

View full product details »

HL-B180H1P-L300

$888,888.00

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continually sealing PE,PP, Foil, Lamilated or paper bags with knurled or plan seal.
* Sealing speed adjustable from 0 to 10 meter p/min for fast sealing work.
* Medium duty design for up to 5kg product with conveyor-seal high adjustment 20-65mm.
* Fitted with 15 mm wide Teflon sealing band. Sealing band centre high 750-900 mm.
* Sealing speed synchronous with Conveyor belt speed .(Conveyor width 300mm)
* Hot foill printer for date or batch number printing. 2 lines of 12x5mm characters.
* Electrical data: 220-240VAC, 700Wat. full duty cycle.
* Machine dimension: 1100 L x 550 D x 1100 H . Weight: 60 kg.

Product Features

* Floor stand with stainless steel frame work.
* DC Variable speed in synchronisation .
* 3 way adjustable:Working high; product hight; angle.
* 1 set of heating bars and 1 set of cooling bars.
* Hot foil date printing.
* Good quality Omron digital temperature controller

Product Options

View full product details »

HL-B280U2HEAD

$888,888.00

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuous sealing heavy PE, PP film, Laminated foil or paper bags

* Sealing speed adjustable from 0 to 10 meter p/min for fast sealing work.

* Medium duty design for up to 5kg bagged product with conveyor height 450 - 850 mm.

* Fitted with Teflon 15 mm wide sealing band (10-15 mm seal width).

* Sealing speed synchronous with Conveyor belt speed .(Conveyor width 200mm)

* 2 set of heating bar specially designed to seal gusset foil bag. Knurled or plain seal

* Electrical data: 220-240VAC, 1400Wat. full duty cycle.

* Machine dimension: 1200 L x 550 D x 1500 H . Weight: 70 kg.

Product Features

Product Options

View full product details »

HL-B280U2P

$888,888.00

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuous sealing heavy PE, PP film, Laminated foil or paper bags

* Sealing speed adjustable from 0 to 10 meter p/min for fast sealing work.

* Medium duty design for up to 5kg bagged product with conveyor height 450 - 850 mm.

* Fitted with Teflon 15 mm wide sealing band (10-15 mm seal width).

* Sealing speed synchronous with Conveyor belt speed .(Conveyor width 200mm)

* 2 set of heating bar specially designed to seal gusset foil bag. Knurled or plain seal

* Electrical data: 220-240VAC, 1400Wat. full duty cycle.

* Machine dimension: 1200 L x 550 D x 1500 H . Weight: 70 kg.

Product Features

* Floor stand/body in stainless steel

* DC Variable speed synchronisation .

* Conveyor and sealing head - height adjustable.

* Fited with Hot Foil Date Coder

* 2 sets of heating bars and 1 set of cooling bars.

* Machine come with L or Righ direction

Product Options

View full product details »

HL-B380U3P

$888,888.00

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuous sealing heavy PE, PP film, Laminated foil or paper bags

* Sealing speed adjustable from 0 to 10 meter p/min for fast sealing work.

* Heavey duty design for up to 25kg bagged product with conveyor height 450 - 850 mm.

* Fitted with Teflon 15 mm wide sealing band (10-15 mm seal width).

* Sealing speed synchronous with Conveyor belt speed .(Conveyor width 290mm)

* 3 set of heating bar specially designed to seal gusset foil bag. Knurled or plain seal

* Hevey dety 370W DC motor driven conveyor (290W x 2,465L) with roller support

* Electrical data: 220-240VAC, 1400Wat. full duty cycle.

* Machine dimension: 1600 L x 550 D x 1500 H . Weight: 120 kg.

Product Features

* Floor stand/body in stainless steel

* DC Variable speed synchronisation .

* Conveyor and sealing head - height adjustable.

* Fited with Hot Foil Date Coder

* 3 sets of heating bars and 1 set of cooling bars.

Product Options

View full product details »

HL-B770L

$888,888.00

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuously sealing PP.PE. laminated film or paper bags.

* Sealing speed adjustable from 0 to 10 meter for fast sealing work.

* Digital control/display for temperature control

* Supplied with pair Teflon sealing bands

* Conveyor belt speed synchronous with sealing speed.

* Sealing pattern flat or knurled sqare cross - 15 mm wide.

* Electrical data: 220-240VAC, 500Wat. full duty cycle.

* Machine dimension: 800 mmL x 400 mmW x 300 mmH . Weight: 25 kg.

Product Features

* Bench top operation.

* Variable speed control.

* Conveyor height adjustable for different product.

* Frame made in stainless steel for food packing.

* Embossing printer.

Product Options

* Teflon coated steel band (spare)

* Vertical stand - installed .

* Teflon band (spare)

* Spare Charactor for Emboss printing

View full product details »

HL-B770R

$888,888.00

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuously sealing PP.PE. laminated film or paper bags.

* Sealing speed adjustable from 0 to 10 meter for fast sealing work.

* Digital control/display for temperature control

* Supplied with pair Teflon sealing bands

* Conveyor belt speed synchronous with sealing speed.

* Sealing pattern flat or knurled sqare cross - 15 mm wide.

* Electrical data: 220-240VAC, 500Wat. full duty cycle.

* Machine dimension: 800 mmL x 400 mmW x 300 mmH . Weight: 25 kg.

Product Features

* Bench top operation.

* Variable speed control.

* Conveyor height adjustable for different product.

* Frame made in stainless steel for food packing.

* Embossing printer.

Product Options

* Teflon coated steel band (spare)

* Vertical stand - installed .

* Teflon band (spare)

* Spare Character for Emboss printing

View full product details »

HL-B810HPG (DISCONTINUED)

$888,888.00

*See HL-B980HPG for updated model.

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuously sealing PP.PE. laminated or paper bags. Max bag product weight 2kg

* Machine designed for sealing and gas flushing with a swing type of gas nozzle

* Digital control/display for temperature control

* Heat sealing with pair of Teflon bands and bags supported by conveyor

* Machine is setup at Horisontal model with light duty stand

* Sealing speed adjustable from 0 to 10 meter in synchrolisation both belt

* Hot Ink Date Coder to print 'Use By Date' or 'Batch Number' etc.

* Electrical data: 220-240VAC, 500Wat. full duty cycle.

* Machine dimension: 1,160 mmL x 400 mmD x 900 mmH . Weight: 35 kg.

Product Features

* Gas flushing to increas product shelve life

* Floor stand operation.

* Variable speed control.

* Conveyor height adjustable little for different product.

* Frame made in stainless steel for food packing.

* Hot ink date coder

Product Options

* Teflon sealing band 810mmL (spare)

* Teflon coated steel sealing band (spare)

* Machine option Left hand or Right hand

View full product details »

HL-B810HUP

$888,888.00

Product Type: Band Sealing Machine/ Band Sealer

Product Information

* For continuously sealing PP.PE. laminated or paper bags. Max bag product weight 2kg

* Sealing speed adjustable from 0 to 10 meter for fast sealing work.

* Digital control/display for temperature control

* Heat sealing with pair of Teflon bands and bags supported by conveyor

* Machine can be setup at Horisontal or Upright model

* Conveyor belt synchronous with sealing speed

* Hot Ink Date Coder to print 'Use By Date' or 'Batch Number' etc.

* Electrical data: 220-240VAC, 500Wat. full duty cycle.

* Machine dimension: 860 mmL x 400 mmW x 300 mmH . Weight: 25 kg.

Product Features

* Bench top operation.

* Variable speed control.

* Horizontal or Upright setup changed in one machine

* Conveyor height adjustable for different product.

* Frame made in stainless steel for food packing.

* Hot ink date coder

Product Options

* Teflon sealing band (spare)

* Teflon coated steel sealing band (spare)

* Machine option Left hand or Right hand

View full product details »

HL-C1420F

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For support product as customer wanted.

* Conveying speed adjustable from 0 to 10 M/M to match the sealer.

* PVC. belting or can be up graded to food grade belt.

* Height normally set up at 900 mm..

* Electrical data: 240VAC, 25Wat. AC motor. Full duty cycle

* Model: SLC20/120. (Conveyor belt size 220W x 1400L)

* Machine dimension:1400 mmL x 220 mmW x900 mmH .

* Machine weight: 35kg.

Product Features

* AC motor and variable speed drive.

* Stainless Steel frame work.

* Adjustable feet for level or castors as option.

Product Options

View full product details »

HL-C1522F

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For support product up to 10kg maximum

* Conveying speed adjustable from 0 to 10 M/M

* PVC. belting or can be up graded to food grade belt.

* Height normally set up at 850 mm.(with 50mm height adjustment).

* Flat belt size: 1,500 roller centre x 220mm wide

* Electrical data: 240VAC, 100Wat. DC motor. Full duty cycle

* Machine dimension:1500 mmL x 300 mmW x 850 mmH .

* Machine weight: around 50kg.

Product Features

* DC motor and variable speed drive.

* Stainless Steel frame work.

* Adjustable feet for level or castors as option.

Product Options

View full product details »

HX-B4AP

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For sealing continually to PE. PP. laminated or paper bags .

* Sealing speed adjustable from 0 to 10 M/M. (can be up graded to 15 M/M)

* PID. temperature controller for accreat temperature control

* Furnished with Teflon coated steel sealing band, good for PE. film.

* Sealing width 5 mm (can be up graded to 6.5 mm)

* Max. film thickness 100um. (200um with additional heating jaw)

* Electrical data: 240VAC, 700Wat. full duty cycle.

* Machine dimension: 800 mmL x 500 mmW x1800 mmH . 30 kg.

Product Features

* Floor stand with lockable castors.

* Wind up / down height adjustment.

* Variable speed control and sealing temperature.

* Product feed from right to left.

* Vertical or Horizontal style

Product Options

* Additional set of heating jaw.

* Wider sealing width 6.5mm

* Band exchange tool.

* Product conveyor SLC20/120.

* Air crushing / holding conveyor.

View full product details »

HX-CONV-BAND

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For support product with 4AP rotary sealer.

* Conveying speed adjustable from 0 to 10 M/M to match the sealer.

* PVC. belting or can be up graded to food grade belt.

* Height normally set up at 900 mm..

* Electrical data: 240VAC, 180Wat. DC motor. full duty cycle

* Model: SLC20/120. (Conveyor belt size 200W x 1200L)

* Machine dimension:1200 mmL x 300 mmW x900 mmH .

* Machine weight: 15kg.

Product Features

* DC motor and variable speed drive.

* Aluminium frame work.

* Adjustable feet for level or castors as option.

Product Options

* SLC20/180.

* SLC20/150

* SLC20/200.

* Stainless Steel frame work

View full product details »

HX-CONV-GEN

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For support product as customer wanted.

* Conveying speed adjustable from 0 to 10 M/M to match the sealer.

* PVC. belting or can be up graded to food grade belt.

* Height normally set up at 900 mm..

* Electrical data: 240VAC, 180Wat. DC motor. full duty cycle

* Model: SLC20/120. (Conveyor belt size 200W x 1200L)

* Machine dimension:1200 mmL x 300 mmW x900 mmH .

* Machine weight: 15kg.

Product Features

* DC motor and variable speed drive.

* Aluminium frame work.

* Adjustable feet for level or castors as option.

Product Options

* SLC20/180.

* SLC20/150

* SLC20/200.

* Stainless Steel frame work

View full product details »

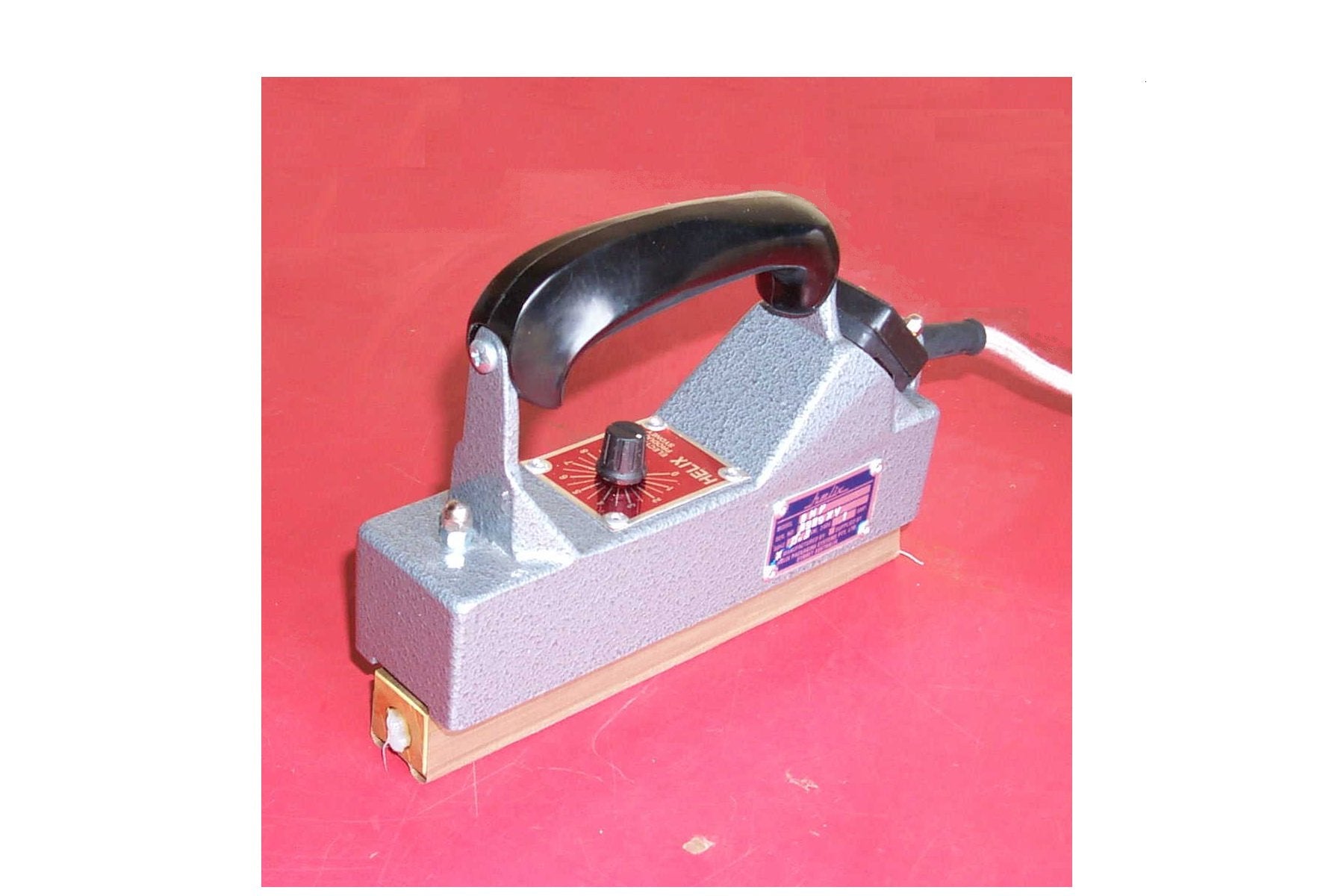

HX-H08HP

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated long film sheet.

* Constant heat single sealing jaws.

* Sealing dimension 6 width x 200 long ( two off 12 mm apart ).

* Max. film thickness 150 um.

* Electrical data: 240 vac, 200 Wat. full duty cycle.

* Machine dimension: 200 mm L x50 mm W x 150 mm H.

* Estimate weight : 2 kg.

Product Features

* Hand held operation.

* Heavy duty design.

* Simple to operate and easy to maintain.

Product Options

View full product details »

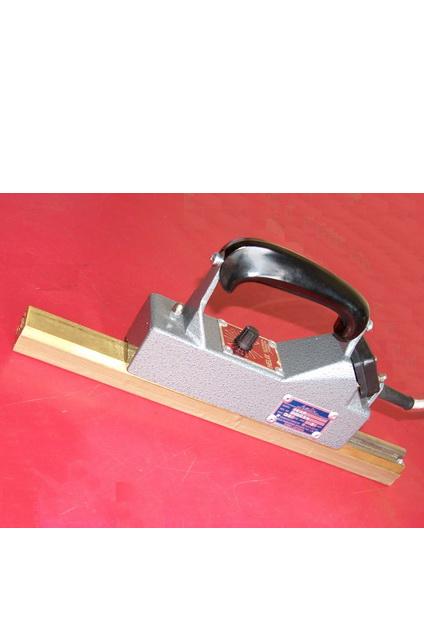

HX-H14HP

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated long film sheet.

* Constant heat single sealing jaws.Temperature range to 250 ¡ìc Max.

* Sealing dimension 6 width x 355 long ( two off 12 mm apart ).

* Max. film thickness 150 um.

* Electrical data: 240 vac, 500 Wat. full duty cycle.

* Machine dimension: 355 mm L x 50 mm W x 150 mm H.

* Estimate weight : 3 kg.

Product Features

* Hand held operation.

* Heavy duty design.

* Simple to operate and easy to maintain.

Product Options

View full product details »

HX-H15CT-2

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For sealing Polyethlene, Polypropolene or laminated foil/film & bags.

* Electronic timed twin impulse sealing jaws.

* Seal dimension 3mm wide x 400 long ( optional 6 mm wide seal )

* Max. film thickness 200 um.

* Electrical data: 240 vac, 1000 Wat. 30% duty cycle.

* Machine dimension: 430 mm L x 250 mm W x 280 mm H.

* Estimate weight : 15 kg.

Product Features

* Bench top or optional Tripod or Vertical stand mounting

* Robust construction, body aluminum casting.

* Made for commercial hard work.

* Simple to operate and easy to maintain.

* Can modify for different functions: vacuum/gas flushing

Product Options

* Vertical stand .

* Tripod stand .

* 6mm wide seal

* Pneumatic operation system

* Flying cutter with secondary jaw .

* Up grade sealing jaw length every 5"

View full product details »

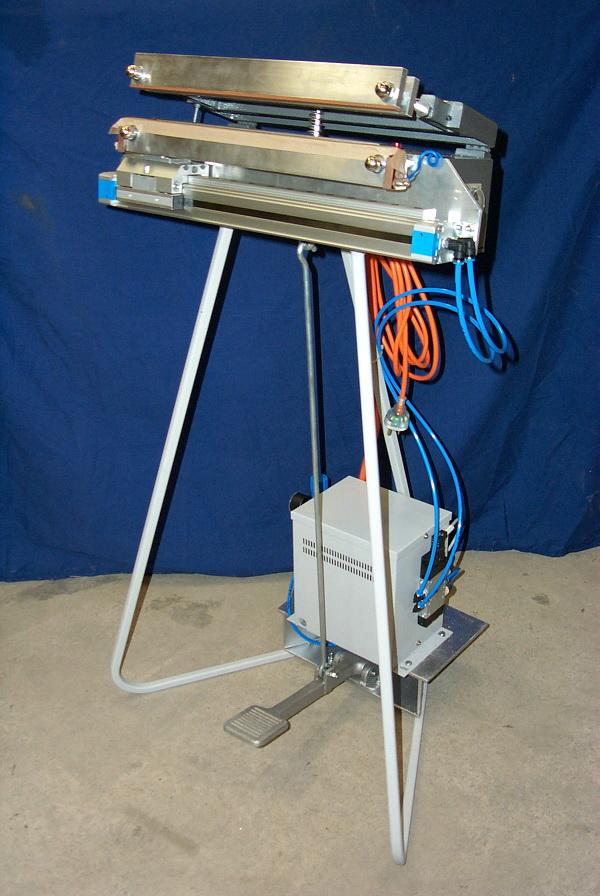

HX-H15CT-NC

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For cutting selvage of the end of sealed tubes for neat appearance

* Pneumatic operation of clamping and cutting blades

* Width of cut blade 375mm

* Mounted on a vertical stand with adjustable product jig holding table

* Power supply 240V. 10A. 40% duty cycle.

* Compressed Air Supply: 600Kpa 20L/min.

Product Features

* Safety dual push button operation

* Interfaces alongside Helix 15CT/2 TSP Tube Sealer

* Puenmaticaly trim the bag edge off.

Product Options

View full product details »

HX-H15CT-NU

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For sealing Polyethylene, polypropylene & laminated film/foil tubes

* Electronic timed - twin impulse sealing jaws

* Elements in both jaws

* Seal length 375mm (15")

* Seal width 3mm (see Options)

* Maximum material single thickness 200 micron

* Mounted on vertical stand with adjustable product table

* Pneumatic jaw closure operation with sealing & seal consolidation, dwell timers

Product Features

* Robust construction - cast aluminium body

* Made for commercial hard work

* Simple to operate - easy to maintain

* Long life elements

* Needs 240V50Hz & 600Kpa 20L/min air supply

Product Options

* 6mm seal width $111.00

* Tube holding jig - 4 or 6 holes $480.00

View full product details »

HX-H15CT-U

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For sealing Polyethlene, Polypropolene or laminated foil/film & bags.

* Electronic timed twin impulse sealing jaws.

* Seal dimension 3mm wide x 400 long ( optional 6 mm wide seal )

* Max. film thickness 200 um.

* Electrical data: 240 vac, 1,200 Wat. 30% duty cycle.

* Machine dimension: 430 mm L x 250 mm W x 1,580 mm H.

* Estimate weight : 45 kg.

Product Features

* Bench top or optional Tripod or Vertical stand mounting

* Robust construction, body aluminum casting.

* Made for commercial hard work.

* Simple to operate and easy to maintain.

* Can modify for different functions: vacuum/gas flushing

Product Options

* Vertical stand .

* Tripod stand .

* 6mm wide seal

* Pneumatic operation system

* Flying cutter with secondary jaw .

* Up grade sealing jaw length every 5"

View full product details »

HX-H15CT-VG

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene or laminated bags

* Electronic timed twin impulse sealing jaws

* Seal dimension 3mm wide(optional 6mm) x 400mm (gas flush 360mm) long

* Max. film thickness 200um

* Electrical data: 240V, 1000W 30% cycle

* Machine dimensions: 700mm L x 650mm D x 920mm H (on tripod stand)

* Approximate weight: 25kg

* Includes Timed Gas Flush system and tripod stand

Product Features

* Mounted on sturdy tripod stand

* Robust construction, aluminium cast body

* Secondary clamping jaws holds bag during gas flush

* Gas nozzle retracts automatically on sealing action

* Ideal for bags/film up to 360mm wide

Product Options

* Vertical stand $642.00

* 6mm wide seal $110.00

* Air evacuation (vacuum system) $1,200.00

View full product details »

HX-H15CT-VP

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated bags seal after vacuum.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3 mm wide (optional 6mm) x 400 mm (vacuum 360mm) long.

* Max. film sealing thickness 200 um.

* Electrical data: 240VAC, 5A, 1000 Wat. 30% duty cycle.

* Machine dimension: 700 mm L x650 mm W x 920 mm H.

* Estimate weight : 28 kg.

* Includes vacuum-pump/system, printer and tripod stand.

Product Features

* Tripod stand mounted.

* Robust construction, body aluminium casting.

* Ideal for different size bags.

* Secondary rubber clamp jaw to close bag .

* Nozzle automatically retracts before sealing.

Product Options

* Vertical stand $642.00

* 6mm wider seal $110.00

* Gas flush system $280.00

View full product details »

HX-H15HLT-2

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated foil / film / bags.

* Electronic timed twin impulse sealing jaws.

* Seal dimension 3 width x 405 long ( in optional can go up to 6 mm wide seal )

* Max. film thickness 200 um.

* Electrical data: 240V/24V, 4A/40A,1000 Wat. 30% duty cycle

* Machine dimension: 560 mm L x 420 mm W x 180 mm H.

* Estimate weight : 3.2 kg for hand held sealer.( Transformer box weight 6.2 kg )

* 3 metres long cable from control box to sealer.

Product Features

* Positive locking handle with button to initial sealing.

* Robust casting aluminium construction.

* Made for commercial hard work, Good.

* Simple to operate and easy to maintain.

* Service and spare part on call.

Product Options

* Up grade jaw length to 20HLT

* 6mm wide seal

* Socket, plug set for box and sealer

View full product details »

HX-H200LAB/D

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For testing Polyethlene, Polypropolene Or laminated film under changeable conditions.

* Digital displayed and control on temperature, time and pressure.

* Provides for changable temperature (DGC.) time (SEC.) pressure (KPa.) for testing.

* Max. film thickness 300 um.

* Electrical data: 240 vac, 500 Wat. full duty cycle ( external 24V for safety operation).

* Pneumatic data: 500 kpa, 0.2 litter per cycle opertion

* Presure data: 3.55 kg / cm2 (196kg force on 55cm2)

* Machine dimension: 360 mm W x 380 mmD x 450 mm H. Estimate weight : 60 kg.

Product Features

* Bench top operation.

* Heavy duty frame work to form strong body

* Constant heat control.

* Australian design and manufactured to high quality.

* Shaped element to spread temperature over length.

Product Options

* Set of Crimp Constant Heat Jaws

* Set of Flat Constant Heat Jaws

* Set of Impulse Heating Jaws

View full product details »

HX-H20BH

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated film/bags.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3 width x 646 long.

* Max. film thickness 400 um.

* Max. film width passing through machine 500 mm.

* Electrical data: 240 vac, 1300 Wat. 30% duty cycle.

* Machine dimension: 700 mm L x 560 mm W x 350 mm H.

* Estmate weight : 25 kg.

Product Features

* Heavy duty bag sealer, made for comercial work.

* Robust sealer body, made by aluminium casting.

* Can operate with pneumatic, vacuum, cutting knife.

* Simple to operate and easy to maintain.

* Through-Turnel design for film tube passing through.

Product Options

* Wider seal 6 mm. Film stand $500.00.

* Horisontal stand. Vertical stand.

* Pnenmatic sealing operation

* Manual cutter. Pneumatic cutter $2,800.00.

* Vacuum system (air evacuation).

* Auto operate vacuum system.

View full product details »

HX-H20CT-2

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated film / bags.

* Electronic timed twin impulse sealing jaws.

* Seal dimension 3 width x 533 long ( in optional can go up to 6 mm wide seal )

* Max. film thickness 200 um.

* Electrical data: 240 vac, 1000 Wat. 30% duty cycle.

* Machine dimension: 550 mm L x 250 mm W x 280 mm H.

* Estimate weight : 18 kg.

Product Features

* Bench top mounted (can be mounted different way).

* Robust construction, body aluminum casting.

* Made for commercial hard work.

* Simple to operate and easy to maintain.

* Can modify for different functions: vacuum/gas flushing

Product Options

* Vertical stand.

* Tripod stand .

* 6mm wide seal.

* Pneumatic operation system.

* Flying cutter with secondary jaw.

* Up grade sealing jaw length every 5".

View full product details »

HX-H20HLT-2

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethylene, Polypropylene and laminated foil/film/paper

* Electronic timed twin impulse sealing jaws

* Seal dimension 3mm wide x 533 long (see Options for 6mm wide seal)

* Maximum film thickness 200 um.

* Electrical data: 240V/24V, 4A/40A,1000 Watt. 30% cycle

* Machine dimensions 560mm L x 555mm W, x 180 mm H

* Estimated weight: Hand Held Sealer 4g - Transformer box 6.2 kg

* 3 metre long cable from control/transformer box to sealer

Product Features

* Positive locking handle with button to initiate sealing

* Robust cast aluminium construction

* Made for commercial hard work

* Simple to operate and easy to maintain

* Service and spare parts on call

Product Options

* Socket / plug set for box & sealer

* 6mm wide seal

View full product details »

HX-H30BH

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For heavy duty sealing - Polyethlene, Polypropolene or laminated film/foil bags.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3mm wide x 900 long. (optional 6mm - 10mm seal width)

* Maximum film thickness 400 um.

* Maximum film width that can pass through machine from rear - 760 mm.

* Electrical data: 240 vac, 1400 Watt 30% duty cycle.

* Machine dimension: 960 mm L x 560 mm W x 350 mm H.

* Estimated weight : 30 kg.

Product Features

* Heavy duty bag sealer - made for comercail work.

* Robust sealer body - cast aluminium casings

* Optional - pneumatic-vacuum-cutting knife operation

* Simple to operate - easy to maintain.

* Tunnel design for pass thru of tube or flat film

Product Options

* Vertical stand.

* Horizontal stand

* Film roll holding stand - 2 rolls

* Pneumatic sealing operation.

* Manual fly cutter

* Vacuum system (air evacuation)

View full product details »

HX-H30BH-U/V

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated bags seal after vacuum.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3 mm wide (optional 6mm) x 880 mm long.

* Max. film sealing thickness 200 um.(vacuum bag max.800mm wide)

* Electrical data: 240VAC, 10A, 2400 Wat. 30% duty cycle.

* Machine dimension: 650 mm D x 980 mm W x 1820 mm H.

* Estimate weight : 65 kg.

* Machine including vacuum system/pump and tripod stand.

Product Features

* Up right stand mounted.

* Robust construction, body aluminium casting.

* Ideal for different size vacuum bags.

* Secondary rubber clamp jaw to close bag .

* Nozzle automatically retracts before sealing.

Product Options

View full product details »

HX-H30CT-H

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated film/bags.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3mm width (optional 6mm) x 788mm long.(760mm on air evacuation)

* Max. film thickness 200 um.

* Electrical data: 240 vac, 2000 Wat. 30% duty cycle.

* Machine dimension: 850 mm L x 250 mm W x 280 mm H.

* Estimate weight : 28 kg.

Product Features

* Bench top mounted.

* Robust construction, body aluminium. casting.

* Made for comercial hard work.

* Simple to operate and easy to maintain.

Product Options

* Vertical stand.

* Trypod stand.

* 6mm wider seal.

* Flying cutter (Manual)

* Pneumatic operation.

* Air evacuation system.

View full product details »

HX-H30CT-U

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated film/bags.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3mm width (optional 6mm) x 788mm long.(760mm on air evacuation)

* Max. film thickness 200 um.

* Electrical data: 240 vac, 2000 Wat. 30% duty cycle.

* Machine dimension: 850 mm W x 650 mm D x 1,280 mm H.

* Estimate weight : 50 kg.

Product Features

* Bench top mounted.

* Robust construction, body aluminium. casting.

* Made for comercial hard work.

* Simple to operate and easy to maintain.

Product Options

* Vertical stand.

* Trypod stand.

* 6mm wider seal.

* Flying cutter (Manual)

* Pneumatic operation.

* Air evacuation system.

View full product details »

HX-H30CT-V

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated bags seal after vacuum.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3 mm wide (optional 6mm) x 780 mm long.

* Max. film sealing thickness 200 um.(vacuum bag max.700mm wide)

* Electrical data: 240VAC, 10A, 2400 Wat. 30% duty cycle.

* Machine dimension: 650 mm L x 850 mm W x 920 mm H.

* Estimate weight : 35 kg.

* Machine including vacuum system/pump and tripod stand.

Product Features

* Tripod stand mounted.

* Robust construction, body aluminium casting.

* Ideal for different size vacuum bags.

* Secondary rubber clamp jaw to close bag .

* Nozzle automatically retracts before sealing.

Product Options

* Vertical stand

* 6mm wider seal

* Gas flushing .

View full product details »

HX-H40BH

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated film/bags.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3 width x 1154 long.

* Max. film thickness 400 um.

* Max. film width passing through machine 1010 mm.

* Electrical data: 240 vac, 1800 Wat. 30% duty cycle.

* Machine dimension: 1200 mm L x 560 mm W x 350 mm H.

* Estmate weight : 40 kg.

Product Features

* Heavy duty bag sealer, made for comercial work.

* Robust sealer body, made by aluminium casting.

* Can operate with pneumatic, vacuum, cutting knife.

* Simple to operate and easy to maintain.

* Through-Turnel design for film tube passing through.

Product Options

* Vertical stand.

* Holisontal stand.

* Film stand

* Manual flying cutter.

* Pnenmatic sealing operation.

* Vacuum system (air evacuation)

View full product details »

HX-H50BH

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated film/bags.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3 width x 1408 long.

* Max. film thickness 400 um.

* Max. film width passing through machine 1250 mm.

* Electrical data: 240 vac, 2200 Wat. 30% duty cycle.

* Machine dimension: 1460 mm L x 560 mm W x 350 mm H.

* Estmate weight :45 kg.

Product Features

* Heavy duty bag sealer, made for comercial work.

* Robust sealer body, made by aluminium casting.

* Can operate with pneumatic, vacuum, cutting knife.

* Simple to operate and easy to maintain.

* Through-Tunnel design for film tube passing through.

Product Options

* Vertical stand.

* Holisontal stand $730.00.

* Film stand with 2 film holders

* Manual flying cutter.

* Pnenmatic sealing operation.

* Vacuum system (air evacuation)

View full product details »

HX-H60BH

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polyethlene, Polypropolene Or laminated film/bags.

* Electronic timed twin impulse sealing jaws.

* Sealing dimension 3 width x 1662 long.

* Max. film thickness 400 um.

* Max. film width passing through machine 1520 mm.

* Electrical data: 240 vac, 2400 Wat. 30% duty cycle.

* Machine dimension: 1720 mm L x 560 mm W x 350 mm H.

* Estmate weight : 60 kg.

Product Features

* Heavy duty bag sealer, made for comercial work.

* Robust sealer body, made by aluminium casting.

* Can operate with pneumatic, vacuum, cutting knife.

* Simple to operate and easy to maintain.

* Through-Tunnel design for film tube passing through.

Product Options

* Vertical stand.

* Horisontal stand.

* Film stand with 2 film holders.

* Manual flying cutter.

* Pnenmatic sealing operation.

* Vacuum system (air evacuation)

View full product details »

HX-H79CH-A

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For sealing autoclavable bags, paper, paper/film or laminated/foil bags.

* Crimp seal bar with 3.2mm tooth pitch x 19mm width x 200mm long (twin jaw)

* Maximum film thickness 150 um.

* Constant heat (CH) - temperature controlled by simmerstat.

* Electrical data: 240 vac, 400 Watt. full duty cycle.

* Machine dimension: 210 mmL x 220 mmD x 200 mmH.

Product Features

* Bench top mounted or optional tripod stand .

* Robust construction - body cast aluminium.

* Simple to operate - easy to maintain.

* Long life sealing bars and elements.

* Temperature knob on 2.5 represents 140??~160??C.

Product Options

* Vertical stand.

* Tripod stand.

* Pneumatic sealing operation.

* Safety guard with pneumatic option.

* Digital temperature controller.

* Safety guard with foot operation

View full product details »

HX-H79CH/C

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For autocleavable bags, Cellophane, Polypropolene, paper/film or laminated bags.

* Crimp seal bar with 1.6 pitch x 19 width x 200 long (twin).

* Max. film thickness 100 um.

* Temperature controlled by simmerstat.

* Electrical data: 240V, 400 W. full duty cycle.

* Machine dimension: 210 mmL x 220 mmD x 200 mmH.

Product Features

* Bench top mounted.

* Robust construction, body made in aluminium casting.

* Simple to operate and easy to maintain.

* Long life sealing bars and elements.

* Temperature knob on 2.5 represent 140?C -- 160?C.

Product Options

* vertical stand

* Tripod stand .

* Pneumatic sealing operation.

* Safety guard with pneumatic option.

* Digital temperature controller.

* Safety guard with foot operate.

View full product details »

HX-H79CH/P

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For Polypropolene, Polyethlene, Cellulose, paper/film or laminated bags.

* Flat seal bar with 6 width x 200 long (single).

* Max. film thickness 100 um.

* Temperature controlled by thimerstat.

* Electrical data: 240 vac, 200 Wat. full duty cycle.

* Machine dimension:210 mmL x 220 mmD x 200 mmH.

Product Features

* Bench top mounted.

* Robust construction, body msde by aluminium casting.

* Simple to operate and easy to maintain.

* Long life sealing bars and elements.

* Temperature knob on 2.5 represent 140 -- 160 DGC.

Product Options

* Pneumatic operation

* Tripod stand

* Safety guard for pneumatic operation

* Digital temp. controller

* Safety guard with foot operation

View full product details »

HX-H80CH/A

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For autocleavable bags, paper, paper/film or laminated bags.
* Coarse_Crimp seal bar with 3.2 pitch x 19 width x 355 long (twin).
* Max. film thickness 150 um - 200 um.
* Temperature controlled by simmerstat.
* Using D1/2' x 13' Heating Element
* Electrical data: 240 vac, 1000 Wat. full duty cycle.
* Machine dimension: 360 mmL x 220 mmD x 200 mmH.

Product Features

* Bench top mounted.
* Robust construction, body msde by aluminum casting.
* Simple to operate and easy to maintain.
* Long life sealing bars and elements.
* Temperature knob on 2.5 represent 140 -- 160 ??C.

Product Options

* Vertical stand.
* Tripod stand.
* Digital temperature control.
* Pneumatic sealing operation.
* Safety guard with pneumatic option.
* Safety heat shield guard with foot oper.

View full product details »

HX-H80CH/C

$888,888.00

Product Type: Heat Sealing Machine/ Heat Sealer

Product Information

* For autocleavable bags, Cellophane, Polypropolene, paper/film or laminated bags.

* Crimp seal bar with 1.6 pitch x 19 width x 355 long (twin).

* Max. film thickness 100 um.

* Temperature controlled by thimerstat.

* Electrical data: 240 vac, 1000 Wat. full duty cycle.

* Machine dimension: 360 mmL x 220 mmD x 200 mmH.

Product Features

* Bench top mounted.

* Robust construction, body msde by aluminium casting.

* Simple to operate and easy to maintain.

* Long life sealing bars and elements.

* Temperature knob on 2.5 represent 140 -- 160 DGC.

Product Options

* Vertical stand.

* Tripod stand.

* Digital temperature control.

* Pneumatic sealing operation.

* Safety guard with pneumatic option.

* Safety heat shield guard with foot oper.

View full product details »

+Packaging Machines

+Main menu

Granules Packaging

Footer menu

Main menu

News & Updates
